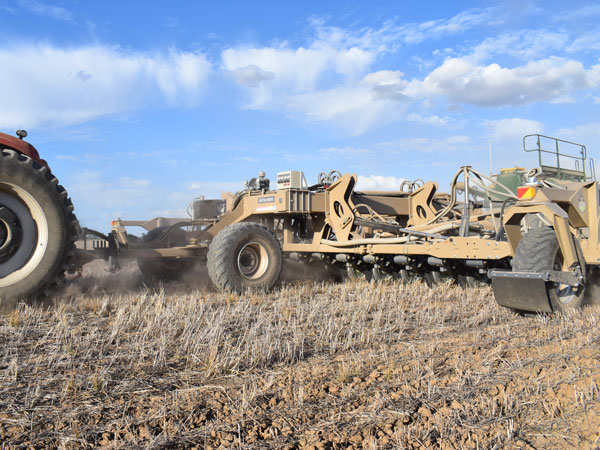

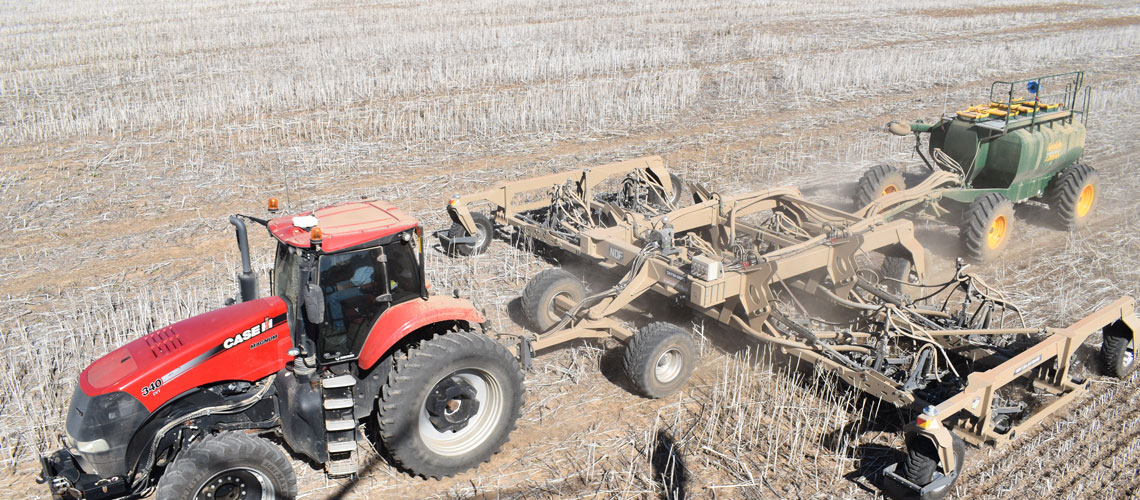

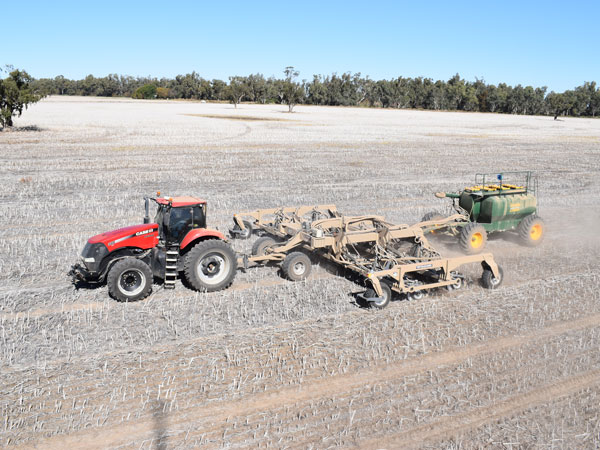

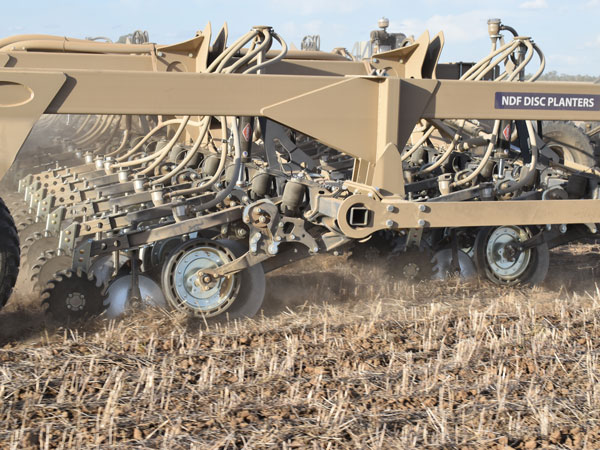

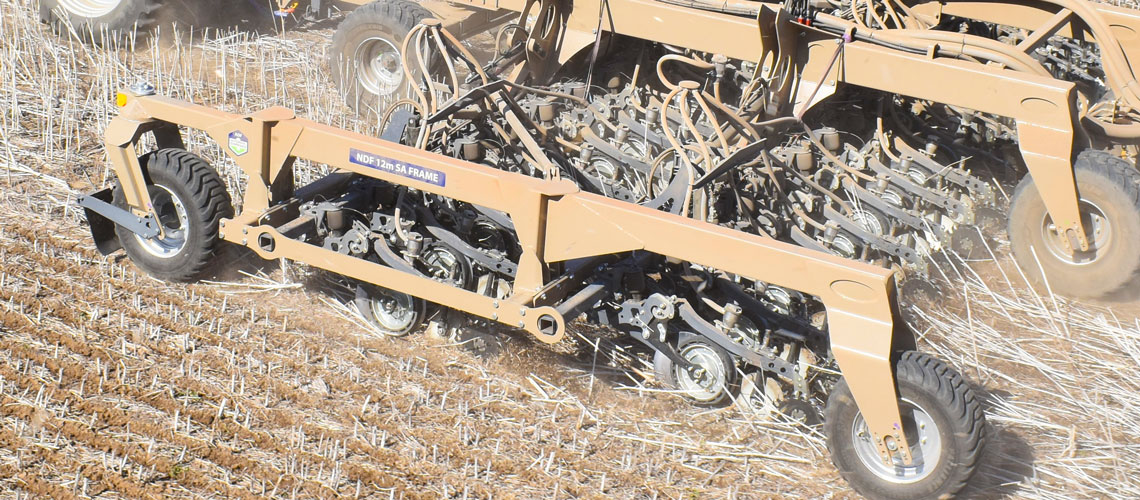

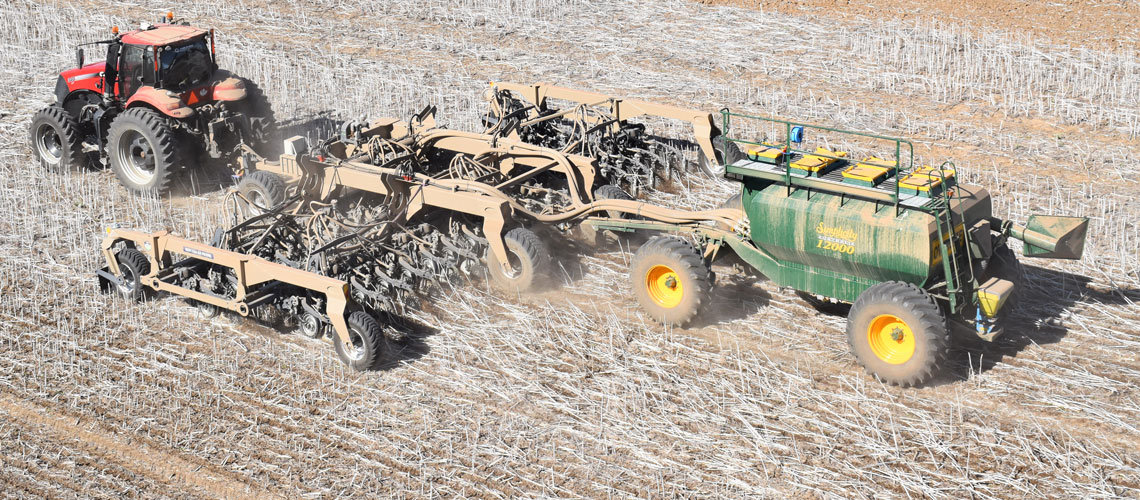

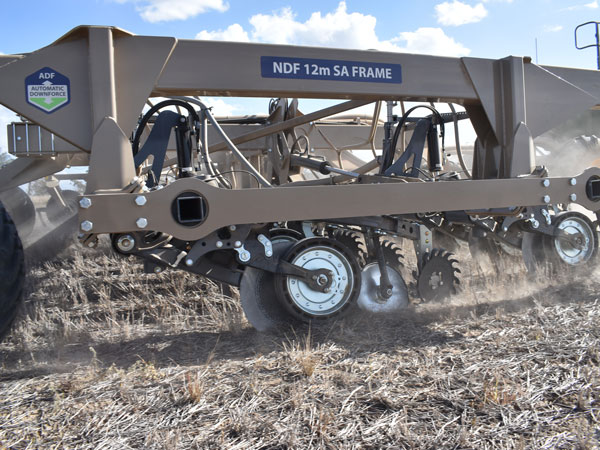

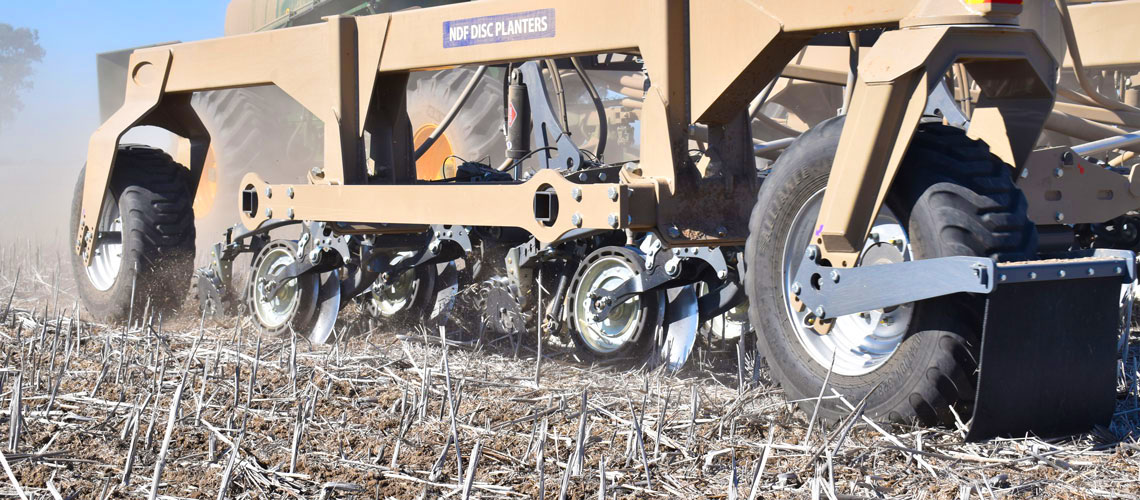

The NDF Double Bar platform is a strong, double bar configuration, together with the SA650 Single Disc Openers this machine can place the seed at a good depth, whether that be sowing the soft black soils of the Liverpool Plains, the sand hills of the Mallee or when moisture seeking west of Moree.
Quick turns are made possible by the fast acting lift design, the units only takes seconds to disengage the soil and to re-engage once the headland turn is complete, meaning more acres sown per hour.
Control Traffic Farming
The NDF Double Bar frame is standard with 3m main wheel centres and the 9-12m models have been designed so the wing wheels are running “track on track” when making subsequent passes making them true CTF machines.
Control Traffic Farming
The NDF Double Bar frame is standard with 3m main wheel centres and the 9-12m models have been designed so the wing wheels are running “track on track” when making subsequent passes making them true CTF machines.
-
STANDARD WORKING WIDTHS - 9m | 10.5m | 12m | 13.5m and custom width available within 9-13.5m range
-
TRANSPORT SIZE - 9m: 4.4m(W) x 4m(H) | 12m: 5.95m(W) x 4.6m(H) | 13.5m: 5.95m(W) x 4.9m(H)
plus tractor & cart
-
TRANSPORT SPEED - 30 km/h
-
OPERATING SPEED - 10 to 16 km/h
-
ROW SPACING - 250mm | 300mm | 333mm | 375mm | 400mm | 500mm (custom available)
-
WHEEL TRACK CENTRE - 3m standard - FRONT OPTIONAL: 2m | 3m | 4m REAR OPTIONAL: 3 or 4m
-
WHEEL TRACK WINGS - 9 to 12m (depending on working width)
-
WEIGHT - 16.5 tonnes (12m with 36 units)
-
TRACTOR HP - 280 to 360 hp (36 units)
-
CONTOUR SPECIAL OPTION AVAILABLE
-
RADIAL CENTRE WHEEL OPTION AVAILABLE
Narrow centre frame option:
Available for machines 9m and under the narrow centre frame is ideal for smaller machines. When folded the transport width is less than 4.5m wide where as the standard centre is 6m wide.
Hydraulic lift dolly option:
The hydraulic dolly is recommended for improved road clearance if your machine is fitted with the optional NDF Residue Managers, this is handy for travel on roads with high crowns.
Hydraulic side shift option:
This option allows the row units to be offset for inter-row sowing without shifting off your tram lines. With side shift on one gang, inter-row sowing of double the width row spacing is achieved. For inter-row sowing of each row, side shift needs to be added to both gangs, also one additional planter unit is required.

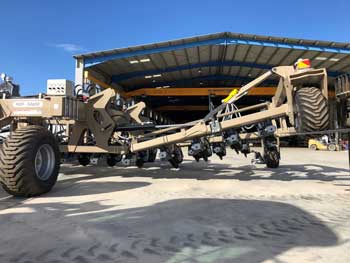

Contour Special option:
When the NDF 9-13.5m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
Available for machines 9m and under the narrow centre frame is ideal for smaller machines. When folded the transport width is less than 4.5m wide where as the standard centre is 6m wide.
Hydraulic lift dolly option:
The hydraulic dolly is recommended for improved road clearance if your machine is fitted with the optional NDF Residue Managers, this is handy for travel on roads with high crowns.
Hydraulic side shift option:
This option allows the row units to be offset for inter-row sowing without shifting off your tram lines. With side shift on one gang, inter-row sowing of double the width row spacing is achieved. For inter-row sowing of each row, side shift needs to be added to both gangs, also one additional planter unit is required.
-
Hydraulic Side Shift
-

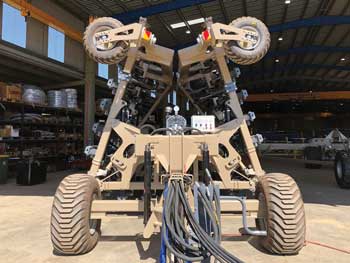

9m SA NF (Narrow Fold) Frame
-
4m Main frame wheel centres - Optional
When the NDF 9-13.5m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
-
Contour hugging preformance with 1.2m up and down wing flex/twist
Contour Special option:
When the NDF 9-15m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
When the NDF 9-15m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
-

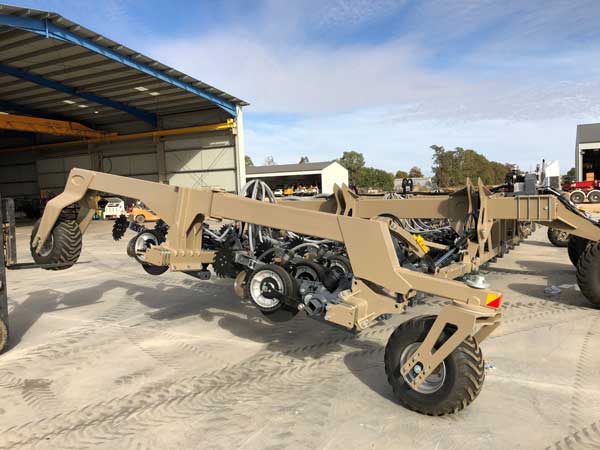

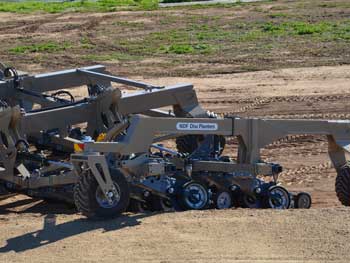

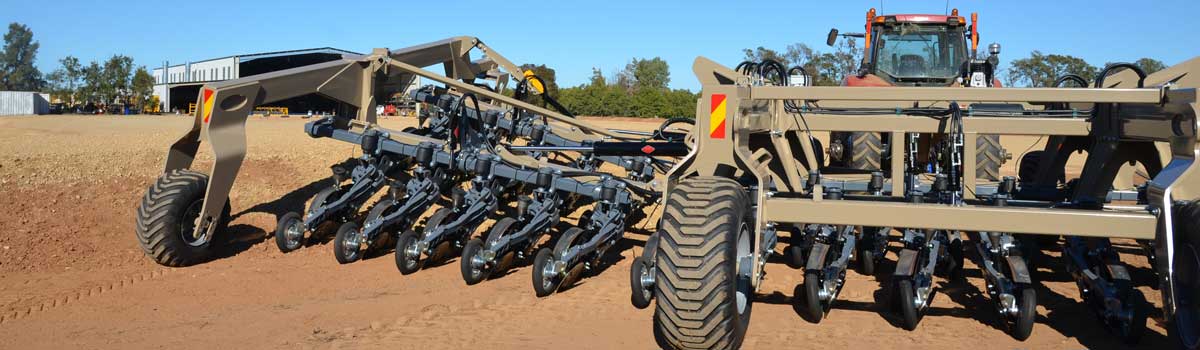

Unique contour flex wings
-
Wing flex up to 1.2m
-
Wings can twist as well as flex up and down
-
Contour hugging preformance
Contour Special option:
When the NDF 9-15m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
When the NDF 9-15m frame is equipped with the NDF Contour Special option, the wings are able to twist, allowing the machine to follow contour banks closely. The machine performs as well in contour country as it does on the open plains.
-
Unique contour flex wings
-
Wing flex up to 1.2m
-
Wings can twist as well as flex up and down
-
Contour hugging preformance
Operator Videos:
The Videos below are accessible using the password located in your NDF Operator's Book. Simply click the Thumbnail to launch the Video on your Computer or Smart device (Tablet or Phone). Insert the Password provided and the Video will play.
The Videos below are accessible using the password located in your NDF Operator's Book. Simply click the Thumbnail to launch the Video on your Computer or Smart device (Tablet or Phone). Insert the Password provided and the Video will play.
Proudly Australian made since 2001
