GAUGE WHEEL ADJACENT TO SEED BOOT FOR BETTER SEED PLACEMENT
FEWER MOVING PARTS THAN SOME TINE MACHINES
BIGGER DISC BEARING THAN ANY OTHER DISC SEEDER
NO DAILY SERVICE REQUIRED
FEATURES INCLUDE
One touch depth adjustment
depth adjustment indicator 5mm increments
Swing away gauge wheel for quick coulter changes
Oil bath coulter bearing with 20,000 hr German made duo-cone face seal
Bolt on hub components for ease of maintenance
All Italian and Spanish SKF bearings
Stainless steel pin and depth adjustment mechanisms with bronze bushings
No grease nipples
Mud flex gauge wheel
Integrated concave disc scraper
height adjustable seed boot
Big coulter disc and gauge wheel to not bulldoze in soft soils
Air bags to allow unit to easily contour follow in sticky conditions
NDF Press Closer for good trench closure in cheesy conditions
CLICK ON PLAY ARROW BELOW TO WATCH VIDEO
AU Regd Des 340833
Pat AU2007207858
Pat AU2007288106
CONFIGURATION - single disc opener
OPENER WEIGHT - 185kg
MIN ROW SPACING SINGLE GANG - 375mm
MIN ROW SPACING DOUBLE GANG - 250mm
MAX SOWING DEPTH - 135mm
MIN SOWING DEPTH - 15mm
DEPTH ADJUSTMENT - 5mm increments
DISC SIZE - 560mm (22")
DISC THICKNESS - 6mm standard 8mm optional
GAUGE WHEEL SIZE - 550mm (19.5")
PRESS WHEEL SIZE - 375mm (15")
PAINT FINISH - 2 pack paint
AVAILABLE OPTIONS
NDF Press Closer - disc closer, positivley cover the seed
RESIDUE MANAGER - for clearing chemical from seed bed

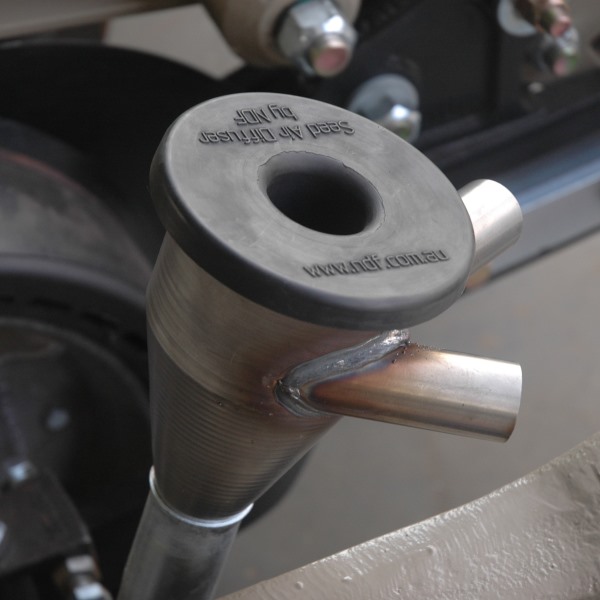

NDF SEED AIR DIFFUSER - improves seed placement by reducing seed bounce
One touch depth stainless steel adjustment with 5mm seed depth adjustments
Main disc/coulter bearing, SKF double row taper roller, in oil bath with duo cone seal
Good access for quick disc change (2-3 minutes)
SA650 sowing in sticky wet soil winter sowing VIC
CONVERT YOUR NDF BAR FOR SUMMER PLANTING
NDF SA650 Single Disc Openers can be retrofitted with the ALL NEW Summer Planter kit.
NDF 24m Narrow Fold with Seed hopper's mounted to top of main wing beam.
NDF 24m Narrow Fold fitted with a Central Commodity Bin. To access the CCS Bin, the operator simply
lifts the machine units up and the CCS Bin and stairs lower to the ground.
